Weight Blocks

Our range of weight blocks offer something for everyone

Various

Linkage

300-3500kg

Weight

75L

Box Capacity

Trusted by the biggest names

Official Supplier of Weights, Transport Boxes & Swath Rollers

Weighing Things Up

Agriweld Weight Blocks offer a comprehensive range of weights designed to fit all types of tractors, from Front-Linkage and Bolster to wafer weights.
Such is the quality of our weights that we are the only company trusted enough to supply some of the biggest tractor brands in the world through our official UK partnerships with Argo and AGCO covering some of the most renowned tractor brands in the world.

Linking Up

Our transport boxes can be fitted to Standard front linkages and non-standard so can be used on any tractor brand on the market.

Weight options

Agriweld weight blocks come in a variety of sizes and designs to offer a large choice. With weights from 300kg to 3500kg we can tailor most to your exacting requirements. We have Variweights that offer the ability to change weight on the fly, either in the form of a Water Variweight or the Wheel Guard Variweight with removable side-pods.

A little Extra?

We offer a comprehensive range of options and upgrade across our Weight Box range, from LEDs and stainless steel faceplates to bumper bars and backlit logos. We can even go bespoke if you need something a little different. Our design team can advise you through the process and make sure we give you a weight to your exact standards.

Key Features

Paint Choice

Colour it how you want

Custom Faceplate

Logo or name of your choice

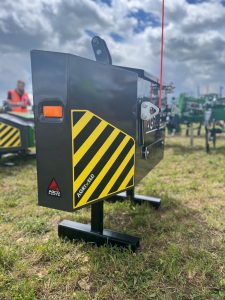

Chevrons

Increased visibility on the road

Standard Features

Fixed side Amber LEDs
Paint colour choice
Grease Gun holder
Reflective Chevrons
7 Pin Plug
Centre Marker Rod
Shackle Points

Optional Extras

Front fixed White LEDs
Front Amber flashing LEDs
Stainless Steel Faceplate
Backlit LED faceplate
Isolator Switch
Bumper Bar
Special Edition Paint

Stainless Steel faceplate

Optional extra – Corrosion resistance and less likely to show scratches or dents compared to painted surfaces.

Agriweld Weight block lit up in the dark

Backlit LED faceplate

Optional extra – Providing a sleek, contemporary appearance whilst also increasing readability in low-light conditions

Adapter Guard

The Adapter Guard utilises your existing cast weight.

Standard weight block

Our most popular weight block available in a choice of weights from 1000kg – 1500kg.

View more details

Compact

The compact weight block offers a choice for those wanting a smaller & lighter weight block. Perfect for smaller tractors or areas with narrower working areas. Fits standard front linkage and available in 500kg – 1000kg weight.

View more details

Wheel Guard Variweight

The Wheel Guard Variweight helps reduces risks and current high profile safety issues relating to potential highway collisions. Our Wheel Guard System is intended to guard the tractor’s front tyres to protect other road users. Combined with variable weight configurations, the Wheel Guard Variweight provides a fresh method to fulfil the varying ballast needs of farmers today whilst addressing the related H & S issues associated with the use of tractors on the public highway.

Up to 2000kg can be used with 1000kg in the centre and 500kg in each side pod (lesser amounts can be configured).

There is also the option to have storage pods instead of weight pods.

View more details

Water Variweight

Our Water Variweight is available in several base weights that can be filled with water to increase their weights, offering flexibility depending on your needs at the time.

700kg fills up to 1300kg

800kg fills up to 1350kg

850kg fills up to 1250kg

900kg fills up to 1413kg

1000kg fills up to 1466kg

1100kg fills up to 1520kg

1200kg fills up to 1573kg

1300kg fills up to 1640kg

1400kg fills up to 1682kg

1500kg fills up to 1735kg

The Water Variweight feature water inlet and outlet bungs for easy filling and draining (we recommend draining or adding antifreeze during winter months).

View more details

Bolster & Subframe

We can offer weight blocks in non-standard mounting too.

Bolster/tombstone mounted are suitable for for 8RX, 9RX style tractors.
A chassis mounted version fixed via the subframe is available for machines such as Challengers.
*No shackle points on these models

View more details

Heavy weight

For those wanting more we offer the Heavy from 2000kg to 3500kg formats.

Available in Standard Front Linkage only.

View more details

Utility Weight

The Utility is our most versatile weight option, designed to accommodate up to 2000kg of weight within the side pods. The 500L capacity central section is available for storage. The design allows for the addition of a 210L fuel tank, which is perfect for extending your workday in the field, or you can run it without the fuel tank for extra storage capacity. Attachment points keep the tank securely in place.

Available in three physical sizes:

750kg – 1000 kg
1100 – 1500 kg
1600 – 2000 kg

View more details

Adapter Guard

This versatile option is designed to enable storage with your existing cast weight while minimizing the dangers of under-the-wheel collisions on the road. The innovative design can be used with several cast weight variants; however, there is an option to use the guard without any weight by installing a separate top link frame. This retains the capabilities of the guard.

Storage pods can be used on either side and can be removed quickly if required.

Reflective chevrons and three-way light stalks, combined with flashing amber LEDs, ensure high visibility to other road users, further increasing safety.

View more details
